Profilplast PE 100 AP

When hydraulically transporting solid materials such as sand, stone, coal, sludge ore, or granulate through pipes, the inside of the pipe is subjected to heavy mechanical stress. The excellent wear resistance, the abrasion and impact protection layer on the inside, and the longer operational lifespan make the PE 100 AP pipe a high-quality alternative to conventional metals.

Long-lasting excellent wear resistance

The PE 100 AP pipes and corresponding fittings are equipped with a specially developed impact and abrasion protection layer on the inside. This makes these pipes extremely suitable for the hydraulic transport of solid materials such as sand, stone, coal, sludge, ore, or granulate, which heavily stress the inside of the pipe.

The PE 100 AP pipes and fittings can be produced in various designs. This makes them suitable for a wide range of applications within the food, cosmetics, and chemical process industries.

• Significantly increased lifespan
• Strong adhesion of the inner layer to the pipe core
• High corrosion and chemical resistance
• Easy installation and assembly thanks to the low weight

Advantages of PE 100 AP

• Complete range of pipes and fittings with abrasion and impact-resistant inner layer
• Significantly increased lifespan
• Strong adhesion of the inner layer to the pipe core
• High corrosion and chemical resistance
• Can be provided with an antistatic inner layer (optional)
• Light-colored UV-stable coating specially for outdoor use (optional)
• Standard welding techniques according to DVS
• Easy installation and assembly thanks to the low weight

Delivery program

Diameter range: 160 to 630 mm, in SDR classes 17 and 11 and various fittings.

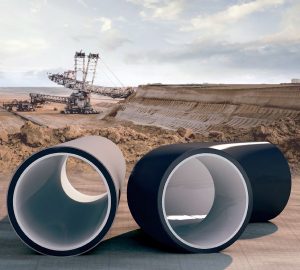

PE 100 AP pipes and fittings with impact and abrasion protection layer

The specially developed impact and abrasion protection layer extends the lifespan of the PE 100 AP systems. The maintenance and replacement interval is extended, resulting in lower installation and maintenance costs due to the longer lifespan.
