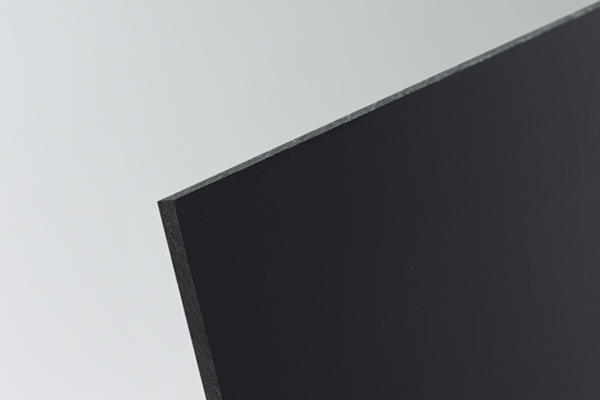

PVDF-EL Sheet Material

Profilplast supplies PVDF-EL sheets for various applications requiring electrically conductive properties. The sheets are available in different dimensions and in thicknesses ranging from 3 millimeters to 80 millimeters.

PVDF-EL sheets are available both extruded and pressed. A pressed sheet contains fewer internal stresses than an extruded sheet. The choice between pressed or extruded sheet depends on the application. Need advice? Feel free to contact one of our plastic specialists. We are here to help you.

PVDF-EL sheets are electrically conductive and are ideal for applications where electrostatic charge is not desired.

Properties

Electrically conductive
Can be used in potentially explosive environments
High chemical resistance
High corrosion resistance
Exceptionally good aging resistance
High-performance material

Standards*

DIN 4102 B1 hardly flammable (self-assessment without test certificate)

Processing*

Sawing, cutting, mechanical processing, thermal forming, punching, welding, cold forming, vacuum forming, turning, milling, cold bending, drilling, and water jet cutting.
*These refer to available standards and possible processing methods. Always inquire about the applicable standards and processing options for each sheet.
